一、Produc Application

It is suitable for plug-in and pull-out testing of connectors. Through computer analysis, it can accurately measure the load and the corresponding change curve of the stroke of the object to be tested, and accurately control the insertion and withdrawal stroke, speed, set times and pause time. . In particular, the special fixtures can make the connector more automatically aligned during the test, and there is no problem of "single side". In addition, the machine uses a servo motor and Windows window control system, which is easy to operate and all materials can be stored. It is definitely a reliable high-performance test instrument.

二、Product Parameters

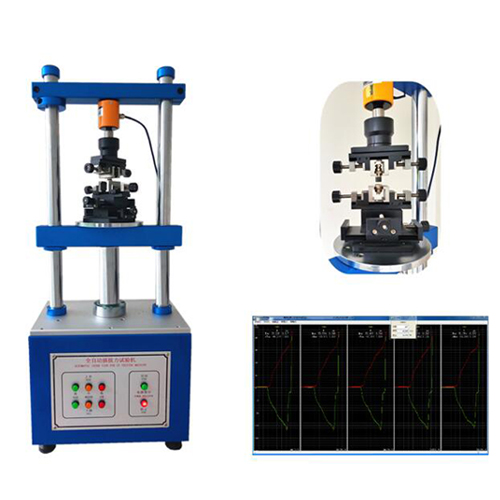

Fixture diagram

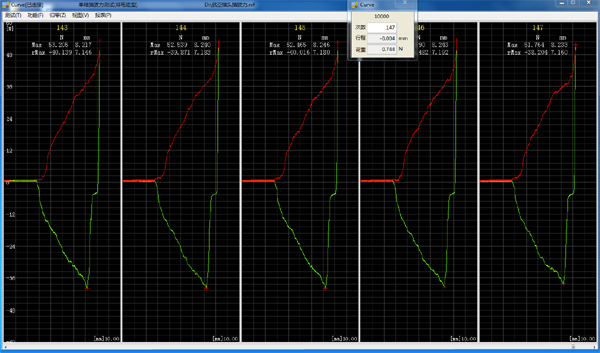

Insertion force curve
