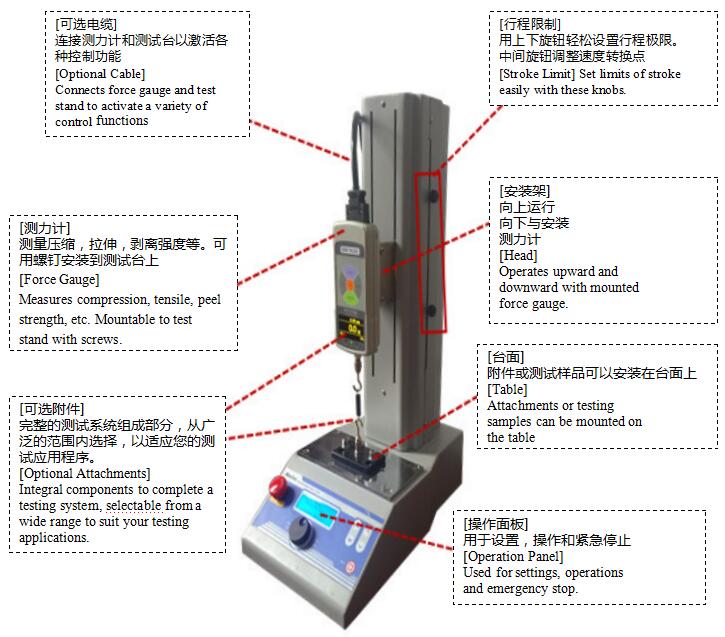

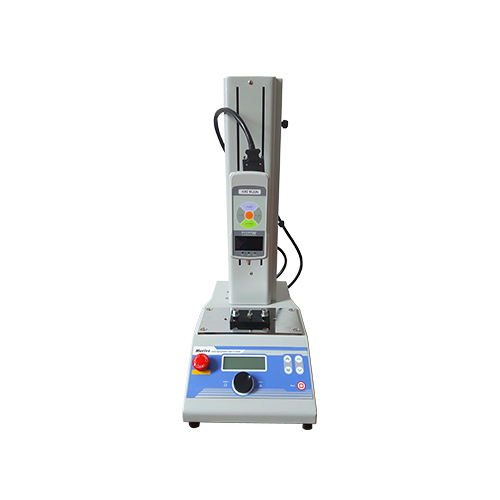

The machine achieves a high repeatability test of force-displacement at a constant test speed, digitally sets the test mode and test speed, and provides the functions of strength test and displacement test together.

◆Set the moving distance according to the sample height

◆Automatically change the driving speed and measuring speed with the set force value

◆Start the software together with the test bench movement

◆ Ergonomic tilt control panel

◆Digital setting dialing operation

◆Three test modes to meet test requirements

◆ Wide range of speeds from 10 to 300 mm / min

◆ Ideal for durability testing by setting the number of test cycles to be repeated

◆ Useful timer function for compression test allows pause at set force value

◆ Can install a variety of fixtures and fixtures

◆ equipped with external signal input

◆ Constant test speed and position where compression and tension are applied

◆Control the stop of the motor stage by setting the length or force value

Application examples and configurations

*The range of the dynamometer is optional, and the cable and test fixture are sold separately.

	測力計上出現力值和位移值。 在峰值模式下，顯示峰值力的峰值和位移值值已被檢測到
	在提供的軟件中，可以傳遞力和位移值。
	3個圖形進行比較，分別是力-位移圖形、力-時間圖形、位移-時間圖形從而可以直觀地分析曲線。

Force - displacement measurement

At the set force (or displacement) point

Use the optional software Force Recorder Professional on your PC.

Connect to the dynamometer via USB and draw a force-displacement map to view the FS curve.
